Brick Slips Behind Radiators: How to Plan Pipework, Brackets and a Clean Finish

Installing brick slips behind radiators can give a room a far more complete finish than stopping the brickwork at each side of the radiator. The wall reads as one continuous surface, the radiator sits naturally in front of the brick effect, and awkward patches of exposed plaster are avoided.

The detail is not difficult because a radiator creates unusually high heat; it is difficult because the radiator, its brackets and its pipework all occupy the same wall that you are trying to clad. If those elements are treated as an afterthought, even carefully fitted brick slips and brick tiles can end up with cramped cuts, buried fixings or pipework that is awkward to service later.

This guide looks specifically at that junction. It is about planning the brick cladding around a wall-mounted radiator, rather than repeating a general brick slip installation guide.

Why brick slips behind radiators need to be planned before you start

A radiator interrupts the wall in three different ways. First, it projects from the finished surface. Second, its brackets need dependable support. Third, the flow and return pipework has to reach the valves without being trapped or damaged by the new wall finish.

Brick slips add a facing layer to the existing wall. Even though the system is much slimmer than building a new full-brick wall, the finished face still moves forwards by the thickness of the slip, adhesive and pointing detail. That change matters when a radiator is already positioned close to the wall.

Before opening adhesive, record:

• the exact radiator width and height;
• the position of each wall bracket;
• where the pipes emerge from the wall or floor;
• the location of valves and any accessible joints;
• the distance between the existing wall and the back of the radiator;
• any manufacturer-stated installation or airflow clearances;
• the finished thickness of the brick slip system you intend to use.

This is one of those jobs where a few measurements taken before installation can save several awkward alterations afterwards.

Should you remove the radiator before fitting brick slips?

If the intention is to create a continuous brick finish behind the radiator, removing it usually gives much better access to the wall. You can set out full courses, make accurate cuts, point properly and inspect the finished surface without working through a narrow gap.

That does not mean every homeowner should disconnect a radiator themselves. If the radiator needs to be drained, valves altered or pipework moved, use a competent plumber where appropriate. The heating system should be dealt with safely and in accordance with the radiator and system manufacturer's instructions.

There are projects where a radiator remains in position and the brick slips are fitted around it. That can be workable when the visible wall is the only area being changed, but it creates a different design: the cladding effectively stops behind the radiator rather than forming a properly finished field across the whole wall.

Decide which result you want before laying out the first course.

Radiator brackets are a structural fixing, not a decorative detail

One of the most important points is easy to miss: a brick slip is a decorative facing. A wall-mounted radiator must be supported by fixings appropriate for the radiator, bracket and underlying wall construction.

Do not treat the brick slip itself as the sole material carrying the load. The bracket fixing arrangement should engage a suitable supporting substrate in accordance with the radiator and fixing manufacturer's requirements. If the new brick finish changes the distance between the bracket and the original wall, that extra build-up needs to be allowed for rather than improvised after the slips have been pointed.

If you need to drill through a finished brick facing to reach the supporting wall, our separate guide on drilling into brick slips explains the general approach to making a controlled hole. The fixing specification itself, however, should be chosen for the wall and the load being supported.

Allow for the finished wall thickness before repositioning brackets

A common mistake is to mark the old bracket locations, fit the brick effect tiles, then discover that the radiator no longer sits where expected because the face of the wall has moved forwards.

Think of the installation as a complete build-up: substrate, any required preparation, adhesive, brick slip and pointing. The exact thickness varies between products and systems, so use the information for the actual materials being installed rather than assuming every brick veneer is the same.

Where the radiator is being removed and refitted, check the final bracket geometry before fixing the surrounding brick slips. It is far easier to adjust the layout while the wall is still accessible than to cut into a completed elevation simply to recover a hidden mounting point.

Plan radiator pipework as part of the brick bond

Pipework is where an otherwise tidy wall can quickly start to look improvised. A copper pipe emerging through the middle of a brick face, a tiny crescent-shaped cut at the edge of a slip or mortar packed tightly around a valve can draw attention for the wrong reasons.

Add the pipe centres to your wall elevation during setting out. Our brick slip setting-out guide explains the broader principle: fixed features should influence the bond before adhesive is applied, not after.

Where possible, aim for pipe penetrations that can be cut cleanly and finished neatly. Do not move heating pipework purely to make the brick pattern more convenient unless that change has been assessed and carried out appropriately.

Pipes that rise from the floor

When radiator pipes rise vertically from the floor, the brick slips may not need to be pierced at all if the pipes sit in front of the finished wall. The key consideration becomes the relationship between the skirting, bottom course, valves and new wall thickness.

Check that the brick cladding will not crowd the back of the valve or make future access unnecessarily difficult. A neat wall is valuable, but serviceability matters too.

Pipes that emerge through the wall

Wall-fed pipes normally require a more deliberate cut. Measure the pipe location from fixed datum points rather than from a loose slip held against the wall. Mark the actual slip only after the course position has been confirmed.

A suitable finishing collar or escutcheon can sometimes make the junction cleaner, provided it is compatible with the pipe and installation. Avoid rigidly packing material around pipework in a way that interferes with the plumbing detail or makes future work difficult.

How to cut brick tiles neatly around radiator pipes

The best cut depends on where the pipe lands within the bond. Sometimes a pipe can be accommodated with a carefully shaped edge cut; in other layouts, a drilled or otherwise formed opening may be appropriate. The important point is that the cut is measured from the laid-out course, not guessed from the radiator position.

Use tools and methods appropriate for the brick slip material and wear suitable protective equipment. Our guide to cutting brick slips cleanly covers the cutting stage in more detail.

Do not force a slip into position against a pipe simply because the cut is slightly tight. If the opening is wrong, remake the piece. One accurately cut brick tile is far less noticeable than a damaged face, chipped edge or distorted pipe.

Set out the courses before the radiator goes back on the wall

Behind a radiator, the easiest temptation is to think that no one will see the brickwork. That is rarely true. The top edge, sides and spaces between radiator panels can reveal enough of the wall to expose poor alignment.

Continue the same bond behind the radiator as you use across the visible wall. Keep joint widths consistent and avoid creating a separate patch of brickwork simply because the centre section will be partly obscured.

This also makes future changes easier. If the radiator is replaced with a narrower model in several years' time, a continuous brick pattern will still make sense. A hurried patch hidden behind today's radiator may become tomorrow's most visible defect.

Choose brick slips that work with the rest of the room

The radiator does not need a special brick product simply because it is mounted on the same wall. The bigger design question is how the brick finish works with flooring, paint, timber, metalwork and the radiator colour itself.

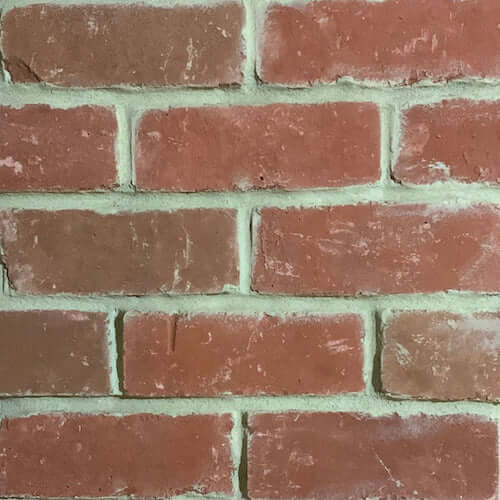

For a traditional red brick effect, the current Wire Cut Red Brick Slips use warm red tones and a rough brick texture. Their product page lists them for internal and external use. If you prefer a lighter or more contemporary wall, the wider Brick-Slips.UK brick cladding range includes grey, white, yellow and blended finishes as well.

Radiators can actually help the brickwork feel integrated. A simple white radiator against red brick creates a clean contrast, while darker radiators can sit more quietly against brown, grey or weathered brick effect tiles. The right choice is the one that belongs to the whole room, not just the wall behind the heater.

Use a compatible adhesive on a properly prepared background

The hidden area behind a radiator deserves the same substrate preparation as the visible wall. The background needs to be sound, suitable for the selected system and prepared in accordance with the relevant product instructions.

For compatible, properly prepared surfaces, Brick Slip & Stone Adhesive is one current product in the store range. Do not use the presence of a radiator as a reason to change the fixing method or take shortcuts with wall preparation.

If the radiator has previously leaked, or the wall shows staining, loose plaster or other damage, deal with the cause and make sure the substrate is suitable before covering it. Cladding should not be used to conceal an unresolved plumbing or wall problem.

Point behind the radiator properly, even if it will be partly hidden

Pointing completes the brick effect and helps the hidden part of the wall remain visually consistent with the rest of the elevation. Trying to point through a narrow radiator gap after everything has been reinstalled is unnecessarily awkward, which is another reason to complete the wall first where practicable.

The store's Natural Brick Slip Mortar is currently described for pointing Brick-Slips.UK brick slips on internal and external projects. Whichever compatible mortar is specified for your installation, finish the joints cleanly and avoid smearing mortar onto valves, pipes or radiator fittings.

Give all materials the required curing time before the radiator is refitted or put back into normal service. Follow the instructions for the adhesive, mortar and heating equipment rather than assuming one fixed waiting period applies to every system.

Think about future access before hiding everything

A good installation is not only about how the wall looks on completion day. Radiators can need bleeding, valve work, decorating, replacement or occasional removal. Pipework may need inspection. Brackets may eventually be changed.

Keep serviceable components accessible. Photographing the wall and bracket positions before the radiator is refitted can also be useful for future reference, particularly once the fixings disappear behind the appliance.

If you ever need to remove the radiator again, protect the brick face from tools and metal edges. For normal ongoing care, the advice in our brick slip maintenance guide provides a useful starting point for keeping the wall clean without aggressive treatment.

Common mistakes when fitting brick slips around radiators

• Ignoring the finished wall build-up. The radiator is refitted and suddenly sits too close to the new face.
• Relying on the decorative facing for a structural fixing. Radiator brackets need an appropriate supporting wall and fixing arrangement.
• Setting out the wall without plotting pipe centres. The bond then produces awkward slivers or unattractive cuts around the valves.
• Leaving pointing until after the radiator is back. Access becomes restricted and the hidden joints often receive a poorer finish.
• Trapping pipework in mortar or cladding. Plumbing details and service access should not be sacrificed for appearance.
• Cladding over a damp or damaged wall. Resolve leaks and substrate defects before installation.
• Forgetting manufacturer clearances. The new decorative layer must not interfere with the radiator's required positioning or airflow.

FAQs about brick slips behind radiators

Can you put brick slips directly behind a radiator?

Yes, a brick slip finish can be used on a suitable wall behind a radiator when the brick slips, adhesive, substrate and overall installation are appropriate. Plan the finished wall thickness, radiator brackets, pipework and manufacturer-required clearances before starting.

Do I have to remove the radiator first?

Not in every project, but removing it normally gives much better access if you want continuous brick cladding behind the appliance. If disconnection, draining or pipe alteration is required and you are not competent to carry it out, use an appropriate plumber.

Can radiator brackets be fixed through brick slips?

A bracket may need to pass through the finished facing, but the load-bearing fixing should be specified for the radiator and the supporting wall construction. Do not rely on the brick slip alone as the structural anchor.

Should brick slips stop at the sides of the radiator?

They can, but that creates a different visual result. Continuing the bond behind the radiator usually gives a more complete wall and makes future radiator changes less likely to expose an unfinished patch.

What is the neatest way to finish around radiator pipes?

Plot the pipe centres during setting out, make accurate cuts in the relevant brick tiles and retain sensible access to valves and plumbing. Where suitable, a compatible pipe collar can tidy the visible junction. Avoid forcing a poorly cut slip against the pipe.

A radiator should sit in front of the design, not dictate it

The cleanest brick slips behind radiators are usually the result of planning the heating hardware and the brick bond together. Once bracket positions, pipe centres, wall build-up and access requirements are understood, the brickwork can continue naturally across the elevation.

That approach also protects the long-term look of the room. If the radiator is replaced later, the wall still works. If a valve needs attention, it remains accessible. And if the appliance is removed temporarily, the brick cladding behind it looks like part of the original design rather than a hidden afterthought.

Start with the actual radiator and wall measurements, choose a finish from the current brick slips, brick tiles and brick veneer range, then set out the wall around the fixed technical details before installation begins.
