External Stone Cladding at Ground Level: DPCs, Air Bricks and Weep Holes

The bottom of an outside wall is easy to overlook when choosing external stone cladding. Most attention goes to colour, texture and how the stone will look around the windows. Yet the junction with a path, driveway or flower bed needs its own plan: this is where the new finish meets the building’s moisture protection, ventilation and drainage.

Before fixing stone slips near ground level, identify the damp-proof course, establish the finished landscaping level and record every vent and drainage outlet. The cladding detail must preserve their function. A neat-looking bottom edge is only successful if the wall can still manage moisture and air as intended.

Start with a photograph of the whole wall base

Take one wide photograph of each elevation, then close-ups of the lower courses, door thresholds, grilles and small openings in the mortar joints. Include a ruler in the detail photographs where useful. Keep a copy without annotations, and use a second copy to mark questions for the installer.

Three features deserve separate labels:

• The damp-proof course (DPC): a barrier intended to interrupt moisture rising through the wall.
• Air bricks: ventilation openings which may serve a suspended floor or another part of the building.
• Weep holes or weep vents: outlets associated with cavity drainage; some proprietary products also provide cavity ventilation.

They are not interchangeable. A small open joint should not be filled merely because the larger air bricks remain visible. If an opening’s purpose is uncertain, have it identified before covering the wall.

Understand what the 150mm DPC dimension actually means

For England, Approved Document C, paragraph 5.5, gives guidance that an external wall’s DPC should normally be at least 150mm above adjoining ground, with an exception where the design provides protection. This is guidance about the DPC’s relationship to ground level; it is not a universal instruction to start every cladding product exactly 150mm above a patio.

The stone’s lower termination, its adhesive and any backing layer need a detail suited to the actual wall and cladding system. They must not create a moisture path around the DPC. Ask the installer to show the proposed junction in section, including where each layer stops.

Confirm the applicable requirements for the project’s UK nation. Older solid walls, uncertain DPC locations and accessible door thresholds need particular assessment rather than a guessed line based on neighbouring brick courses.

Agree the landscaping level before the first stone is fixed

A cladding installer and a paving contractor may visit weeks apart. Give both the same information. If one works from the existing path and the other later raises it, the finished junction can be quite different from the one originally discussed.

For example, imagine that a new driveway will finish 60mm above the current surface. On the photograph, draw both levels and label them clearly. Ask for the cladding base, DPC relationship, vents and drainage to be checked against the proposed level. That 60mm is an illustrative project change, not an allowable clearance.

A useful handover sheet records:

• The present and proposed paving or soil levels.
• Who has identified the DPC and checked the wall condition.
• The agreed cladding termination and any separately designed plinth.
• Every opening which must remain functional.
• Who will check the junction after the landscaping is complete.

A photograph of another property cannot provide these answers for yours. Even a similar-looking elevation may have a different floor construction or drainage arrangement.

Air bricks need a continuous air route

Leaving a rectangular gap in the stone is only part of the job. The new wall finish adds depth, so the route through the opening needs checking too. An air brick should not end up buried behind adhesive, partly masked by a projecting stone or disconnected from the space it serves.

Manufacturers offer purpose-designed ventilation components: for example, Manthorpe’s combination cavity sleeve works with its compatible air brick to carry ventilation through a wall. That illustrates why a vent is an assembly, rather than just a grille. It is not a recommendation to fit that particular component to every cladding project.

Have the required opening area, suitable extensions and weathering detail checked for the existing construction. Avoid choosing a smaller replacement simply because it fits neatly between two stone slips. Once the layout is agreed, mark the vent position on the setting-out drawing so it does not become an awkward last-minute cut.

Keep weep outlets open at the finished face

Weep vents may be much less noticeable than air bricks, especially when they are colour-matched to mortar. Before work starts, photograph their positions and check how any associated cavity tray drains. The new finish must not obstruct the outlet or leave water discharging into an unintended pocket behind the stone.

Timloc’s cavity wall weep-vent guidance stresses correct positioning and keeping the vent clear of mortar, including at its back. For a retrofit, ask the designer or installer how the existing drainage path will remain continuous through the additional finish.

Do not move a weep to suit the stone pattern without a designed detail. Protect identified openings during fixing and pointing, then inspect them again when the work is clean and accessible. Adding a random gap elsewhere in the cladding is not evidence that the original cavity drainage still works.

Choose the appearance once the technical junction is settled

The visible base can be considered alongside the stone colour, paving and door frames. A deliberate change of material can look more convincing than forcing an irregular stone pattern into a narrow strip at the bottom of the wall. Ask for a small dry layout or sample panel showing the proposed bottom edge before agreeing the finish.

Our Cotswold Blend stone slips combine buff and sandstone tones and are pre-cast rather than cut from quarried Cotswold stone. The product is listed for internal and external applications, but an exterior-suitable facing does not determine the correct DPC, vent or below-ground detail for a building.

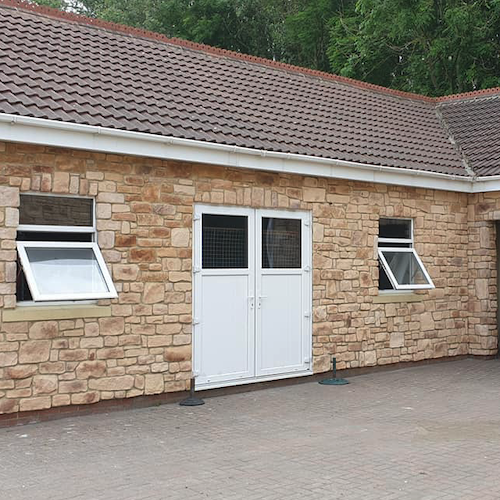

The featured photograph shows Cotswold Blend used on an exterior elevation. It illustrates the finished appearance; concealed construction and moisture-control details cannot be verified from the photograph.

For the broader visual layout of a low, wide elevation, see our guide to stone cladding on bungalows. Once the permitted cladding area and all openings are agreed, use the stone cladding measuring guide to prepare the order.

Investigate damp before covering the evidence

Staining, salts, loose finishes or persistent wet patches deserve investigation before a new facing is added. They do not establish a single diagnosis by themselves. The Property Care Association’s code on investigating dampness sets out an assessment-led approach. Decorative cladding should follow an appropriate diagnosis and repair, rather than conceal the symptoms.

Before signing off the job, compare the completed wall with the original annotated photographs. Account for every vent and outlet, confirm the agreed base detail is visible where it should be, and keep the installer’s specification with the photographs. Pass that record to anyone who later alters the paving or adds a raised bed against the house.
