Brick Slips Around Windows and Doors: How to Finish Reveals, Returns and Edges Properly

Brick slips can look remarkably convincing across a flat wall, but windows and doors are where the quality of the detailing becomes much easier to judge. A neat reveal, a deliberate return and a clean junction with the frame help the finished surface read as considered brickwork rather than a decorative layer that simply stops at an opening.

This guide focuses specifically on brick slips around windows and doors: the jambs at each side, the head above the opening, the sill or threshold below it, and the edges where the main wall turns into the reveal. It is not a general installation guide. If you are still planning the courses across the main wall, start with our brick slip setting-out guide before deciding how those courses should meet an opening.

Whether you call them brick slips, brick tiles, brick effect tiles, brick cladding or brick veneer, the same principle applies: the opening needs to be treated as an architectural detail in its own right.

Why windows and doors need a different plan from a flat brick slip wall

A flat wall gives you one visible plane. A window or doorway creates several: the face of the wall, the side reveals, the head, and sometimes a sill or threshold. It also introduces a frame made from a different material, often with its own movement, sealant and finishing requirements.

That means the question is not simply, “Where should the next brick slip go?” You also need to decide:

• whether the brick slips will stop on the face of the wall or continue into the reveal;
• how the exposed outside edge will be finished;
• whether a purpose-made corner piece, a cut straight slip or another termination detail suits the opening;
• how horizontal courses will meet the head and sill without leaving awkward slivers;
• how much clear space the frame, architrave or sealant detail needs;
• and, on exterior openings, how the decorative brick finish works alongside the weatherproofing system.

Making those decisions before adhesive is mixed is usually far easier than trying to disguise an untidy edge at the end.

Start by choosing one of three opening finishes

Most window and door details fall into one of three visual approaches. None is automatically right for every project; the best choice depends on the depth of the reveal, the frame position, the look you want and the installation system being used.

1. Stop the brick slips at the face of the opening

This is the cleanest option when the reveal is to remain plastered, painted, timber-lined or finished in another material. The brick slips finish at a controlled vertical edge and the reveal becomes a deliberate contrast.

The important point is that the stopping line should look intentional. A series of random cut lengths against the frame can make an otherwise good wall look unfinished. Plan the bond so the vertical edge has a consistent rhythm, and decide in advance whether the exposed thickness of the slips will be visible or concealed by the chosen edge detail.

2. Wrap the brick finish into the reveal

Continuing brick slips into the reveal creates a deeper, more masonry-like appearance. It can be especially effective around doorways, internal openings and windows where the return is wide enough to show a meaningful section of brickwork.

At the outside 90-degree edge, a purpose-made corner slip can help the face and return read as one brick wrapping around the corner. Our guide to what corner brick slips are used for explains the visual role of those pieces in more detail.

3. Use a crisp cut-edge or trim-style termination

Some contemporary interiors suit a sharper, flatter finish. Straight brick tiles can be cut to meet a frame, shadow gap or specified trim rather than trying to imitate a full brick return. This can work particularly well where the reveal is shallow and a corner piece would feel oversized.

The key is consistency. If you choose a visible cut-edge detail, keep the line straight, the cut quality even and the joint relationship deliberate all the way around the opening.

How to detail the side reveals

The vertical sides of a window or door opening are usually called the jambs. They are also where the thickness of a brick slip installation is most obvious, because the main wall turns through 90 degrees.

Before fixing anything, measure the reveal depth at several points. Older UK properties are not always perfectly square, and even newer openings can vary slightly once plaster, boards or frame finishes are taken into account. A return that fits neatly at the top but leaves a noticeably different cut at the bottom is difficult to correct after the first courses are fixed.

If you are wrapping brick slips into the reveal, dry-position a few courses on the face and a few on the return together. That lets you see whether the corner detail, joint width and reveal cut work as one composition rather than as two separate walls.

Where corner pieces are being used, the opening can often look more convincing when the corner establishes the visible edge and the straight slips work back from it. That does not mean every opening must use corners, nor that every system should be installed in the same sequence. Check the relevant product and installation guidance for the materials on your project.

Getting brick courses to land neatly beneath a window sill

The strip of wall immediately below a window is a common place for awkward cuts. If the course height is not considered early, the final gap beneath the sill can end up too small for a visually comfortable slip.

Rather than accepting a very thin last piece, look at the entire area below the opening. A small adjustment to the starting position or joint distribution may allow the courses to finish with a more balanced cut. This is exactly why the opening should be included in the wall layout before fixing begins.

Keep the visible line beneath the sill straight, but do not assume the sill itself is perfectly level. Check it independently. If it falls slightly, blindly following it can make the brick courses look as though they are drifting. The aim is to make the masonry pattern read correctly while accommodating the actual geometry of the opening.

Finishing the head above a door or window

The head is the top of the opening. Visually, this is where viewers tend to notice whether the course pattern has been planned or simply cut to fit whatever space remained.

For an internal feature wall, the main priorities are usually a clean underside, sensible cut sizes and a tidy relationship with the frame or lining. On a more traditional scheme, you may also want the brick pattern above the opening to feel connected to the bond on the wider wall rather than appearing as an isolated strip.

Brick slips are a surface finish. They are not a structural lintel and should never be treated as a substitute for the structural support required above an opening. If the substrate, lintel condition or stability of the opening is uncertain, have it assessed before applying the finish.

Door frames, architraves and shadow gaps: do not crowd the junction

A door opening often has more finishing components than a window: the frame, architrave, lining, threshold and sometimes skirting meeting the jamb. Decide which element is supposed to visually “win” at the edge.

For example, if architrave is intended to sit over the finished wall, its depth and fixing position need to be compatible with the completed brick slip build-up. If the design uses a shadow gap instead, that gap needs to remain clean and consistent rather than becoming a place to hide irregular cuts.

Do not hard-pack brick slips against a frame simply to eliminate a visible line. Frames and surrounding construction can move differently from a rigid tile finish, and the correct junction depends on the system and frame specification. Follow the relevant manufacturer or installer guidance for movement joints, sealant and clearances.

When straight brick tiles can work better than corner pieces

Corner slips are useful, but they are not the answer to every opening. Straight brick tiles may be the cleaner choice when:

• the reveal is too shallow to accommodate a convincing return;
• the frame sits close to the face of the wall;
• the design deliberately uses a metal, timber or plaster edge;
• the opening is highly contemporary and a crisp cut line suits the architecture;
• or the visible return is so narrow that a full corner effect would look forced.

Think of the opening as a three-dimensional object rather than as a hole in a tiled wall. The right detail is the one that makes the thickness, edge and frame relationship look deliberate.

Rustic brick slips need careful edge selection

A heavily textured face can look excellent across a broad wall, but openings place more attention on individual pieces. A chipped, deeply weathered or strongly irregular edge that looks natural in the middle of a wall may be distracting when it sits directly against a smooth window frame.

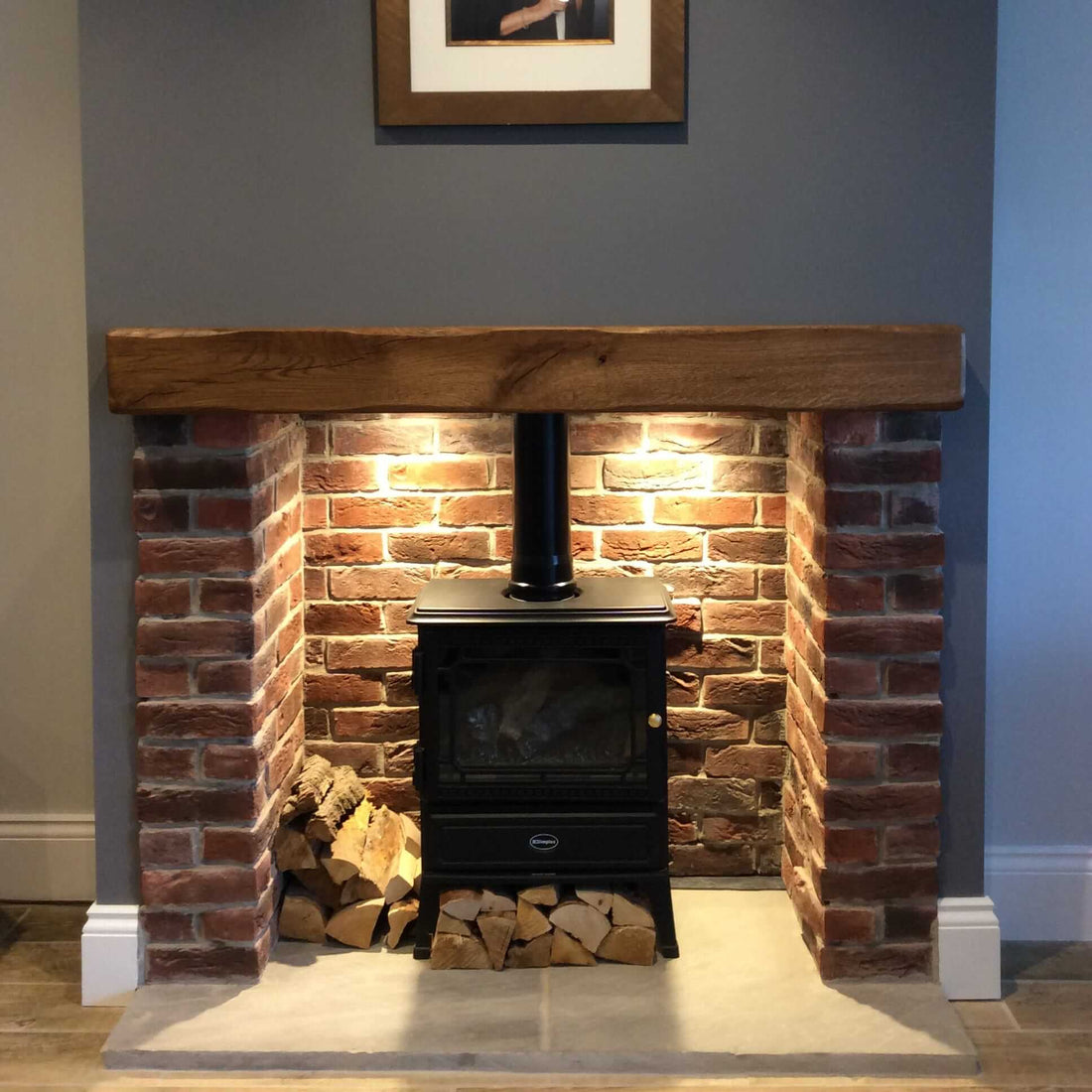

For a traditional red-brick look, for example, our current Rustic Red Brick Slips show the kind of texture that can give a wall strong character. Around openings, select the pieces for each visible edge rather than fitting them blindly from the box. That is not about removing natural variation; it is about placing variation where it looks intentional.

You can browse the wider brick slips, brick tiles and brick cladding range to compare colours and surface styles before deciding how prominent you want the opening detail to be.

Pointing around windows and doors without making the frame look messy

Pointing is often the stage at which a crisp opening either comes together or loses definition. The joints around the jambs and head should belong to the same visual system as the rest of the wall, but the mortar should not be allowed to smear across frames, seals or finished timber.

Protect adjacent surfaces appropriately and work to the joint profile specified for the installation. If you are using a pre-mixed pointing product, follow its instructions rather than assuming the same water ratio, working time or application method applies to every mortar. The store's Natural Brick Slip Mortar is one current option intended for pointing brick slips, but suitability for a particular wall still depends on the complete installation system and project conditions.

Internal and external openings need different levels of detailing

Inside a house, finishing brick slips around a window is mainly a matter of appearance, substrate suitability and a clean junction with the frame. Outside, the opening is part of the building envelope, so water management matters just as much as appearance.

Exterior brick cladding or brick veneer should never be used as a replacement for the weatherproofing details that the wall construction requires. Window and door seals, flashings, cavity trays, damp-proof details, sills and drainage paths must remain correct for the building and chosen cladding system. Decorative brick slips should be integrated with those details, not placed over them in a way that compromises them.

If you are planning an external project, read our broader exterior brick slips guide as well, and use the manufacturer’s installation specification or a competent installer for the opening details themselves.

A practical sequence for planning a brick slip opening

1. Measure the face and every reveal. Check the width and depth at more than one point rather than assuming the opening is square.
2. Choose the termination. Decide whether the brick effect tiles stop on the face, wrap into the reveal or meet a specified trim or frame detail.
3. Mark the main courses. Check where horizontal joints will meet the sill, head and threshold before fixing the first row.
4. Test the corner treatment. Dry-position corner slips or cut straight pieces at the most visible jamb.
5. Check the frame junction. Allow for any required sealant, movement or shadow gap rather than filling every space rigidly.
6. Select visible-edge pieces. Put heavily textured or irregular slips where their character looks natural, not where they create a distracting frame line.
7. Protect the frame before pointing. Keep mortar and adhesive away from finished frame surfaces and seals.
8. Re-check exterior weather details. Make sure the decorative finish does not obstruct required drainage, flashing or sealing components.

Common mistakes around window and door reveals

Leaving the opening until last. If the whole wall is fixed first and the reveal is treated as an afterthought, you may be forced into tiny cuts or mismatched joint lines.

Assuming both jambs are identical. Measure them. A few millimetres of difference can become much more obvious once repeated across several courses.

Using every corner piece in exactly the same orientation. A natural brick-effect finish usually benefits from visual variation, provided the bond and edge remain controlled.

Hiding a poor cut with excessive mortar. Mortar is part of the brickwork appearance, not a substitute for accurate cutting.

Forgetting the finished thickness. Brick slips plus adhesive create a build-up on the face and reveal. Check that this works with architraves, sills, handles, hinges and other nearby fittings before installation.

Frequently asked questions about brick slips around windows and doors

Can brick slips be fitted inside a window reveal?

They can be used in many window reveals when the substrate, reveal depth and chosen installation system are suitable. The edge detail and frame junction should be planned before fixing. For exterior windows, the weatherproofing and drainage details of the building envelope also need to remain correct.

Do I need corner brick slips around a doorway?

Not always. Corner slips can create a convincing wraparound brick effect at a 90-degree return, but shallow reveals or contemporary designs may look better with accurately cut straight brick tiles or a specified termination detail.

How should brick slips finish against a window frame?

The exact junction depends on the frame, substrate and installation system. The finish should be straight and deliberate, while any required sealant, movement allowance or frame clearance is maintained. Do not assume a rigid mortar-filled junction is suitable for every frame.

Can exterior brick slips be taken right up to a window?

They can form part of an exterior finish around openings, but they must work with the wall’s required sealing, flashing, drainage and damp-proofing details. The brick slips themselves are not a substitute for those components. Follow the system manufacturer’s specification and obtain competent advice where the opening detail is uncertain.

Make the opening part of the design, not an afterthought

The best brick slip walls do not become less convincing when they meet a window or door. The bond remains balanced, the reveal feels intentional, the frame junction is clean and the edge detail makes sense for the architecture.

Plan those decisions at the same time as the rest of the wall. Doing so gives you far more control over cuts, corners, pointing and visual rhythm, and it helps the finished brick slips look like an integrated part of the room or elevation rather than a surface applied around an opening.
