Stone Cladding Access Panels: Keep Stop Taps and Services Reachable

A stone-clad utility wall can look beautifully finished until a plumber needs the valve behind it. If the only route in involves breaking out stone slips, a small maintenance job becomes a repair to the room as well.

Planning stone cladding access panels starts with deciding what must remain reachable, how it will be reached and whether the opening needs a stone finish at all. A discreet painted hatch beside the cladding may be a better answer than a heavy concealed door within it. Resolve that choice before the wall is boarded or the stone pattern is set out.

Map the task behind the wall, not just the pipework

Walk through the proposed cladding area with the trades responsible for the services. Ask them to identify any controls, fittings or equipment that need inspection, operation, maintenance or eventual replacement. An existing access cover is a reason to investigate, not an invitation to cover it.

For each item, describe the task: turn a stop tap, remove a filter, read a meter or release a component. These actions require different amounts of space. Seeing a fitting through a hole does not mean that someone can work on it.

Water Regs UK’s guidance on stop valves emphasises accessible positioning, clear identification and ease of operation. Keep emergency shut-off access straightforward; it should not depend on dismantling a decorative wall or remembering which apparently fixed stone is removable. Ask a competent plumber to resolve an unsuitable valve position before decorative work begins.

This guide concerns internal wall finishes. Gas appliances, flues, electrical equipment and fire-resisting walls need their own specialist assessment; a general-purpose hatch is not evidence that their access, ventilation or fire requirements have been met.

Three ways to preserve access through internal stone cladding

A plain hatch in an unclad area

Where the layout permits, stop the stone at a deliberate boundary and put the access opening in the adjacent painted surface. A narrow unclad service strip can read as part of the room’s design, especially beside cabinetry. It also avoids adding the stone’s weight and texture to the door.

The services must actually be reachable from that position. Moving the opening sideways to improve the elevation is pointless if the fitting remains out of reach around a corner.

A cupboard that leaves working space

A service cupboard can accommodate a larger opening, but shelves, drawers and stored items must not defeat the access it provides. Ask the relevant trade to confirm the space needed and consider how occupants will find the shut-off quickly. Do not assume an ordinary cupboard is suitable for enclosing equipment with ventilation or other special requirements.

A purpose-designed stone-faced access door

Use this option only where the access-panel manufacturer confirms suitability for the proposed finish and installation. “Tileable” is not a blanket approval for every stone slip. The leaf, hinges, catches, frame and supporting construction must work together with the actual facing load and depth.

For context, the Access Panels Direct tiled-panel specification sets limits for facing weight and thickness and offers different operating arrangements. Those limits illustrate why the exact configuration matters; they do not establish compatibility with our stone cladding. Send the manufacturer the complete proposed build-up and obtain a project-specific answer.

Allow for the finished face, not the bare board

Our Cotswold Blend stone slips are pre-cast and have a stated thickness range of 15–35mm. That variation is part of their textured appearance, but it also shows why a hatch cannot be positioned using only the thickness of its backing board.

The installer and panel supplier need to account for the stone, adhesive, pointing and any other specified layers. They should confirm both the permitted load and the finished geometry. Do not compare the stone weight alone with a panel’s maximum facing allowance and assume the remaining materials are negligible.

There are two separate clearance checks:

• Behind the opening: enough usable space to reach, operate and service the fitting.
• In front of the opening: enough room for the door to swing or lift out without striking neighbouring stone, a worktop, appliance or cabinet handle.

A deep stone face near the hinge can clash even when an unfaced door opens freely. Have the installer check the proposed finished profile before fixing the cladding. A lift-out leaf also needs a safe means of handling and a place to put it down; it is not automatically the easier option.

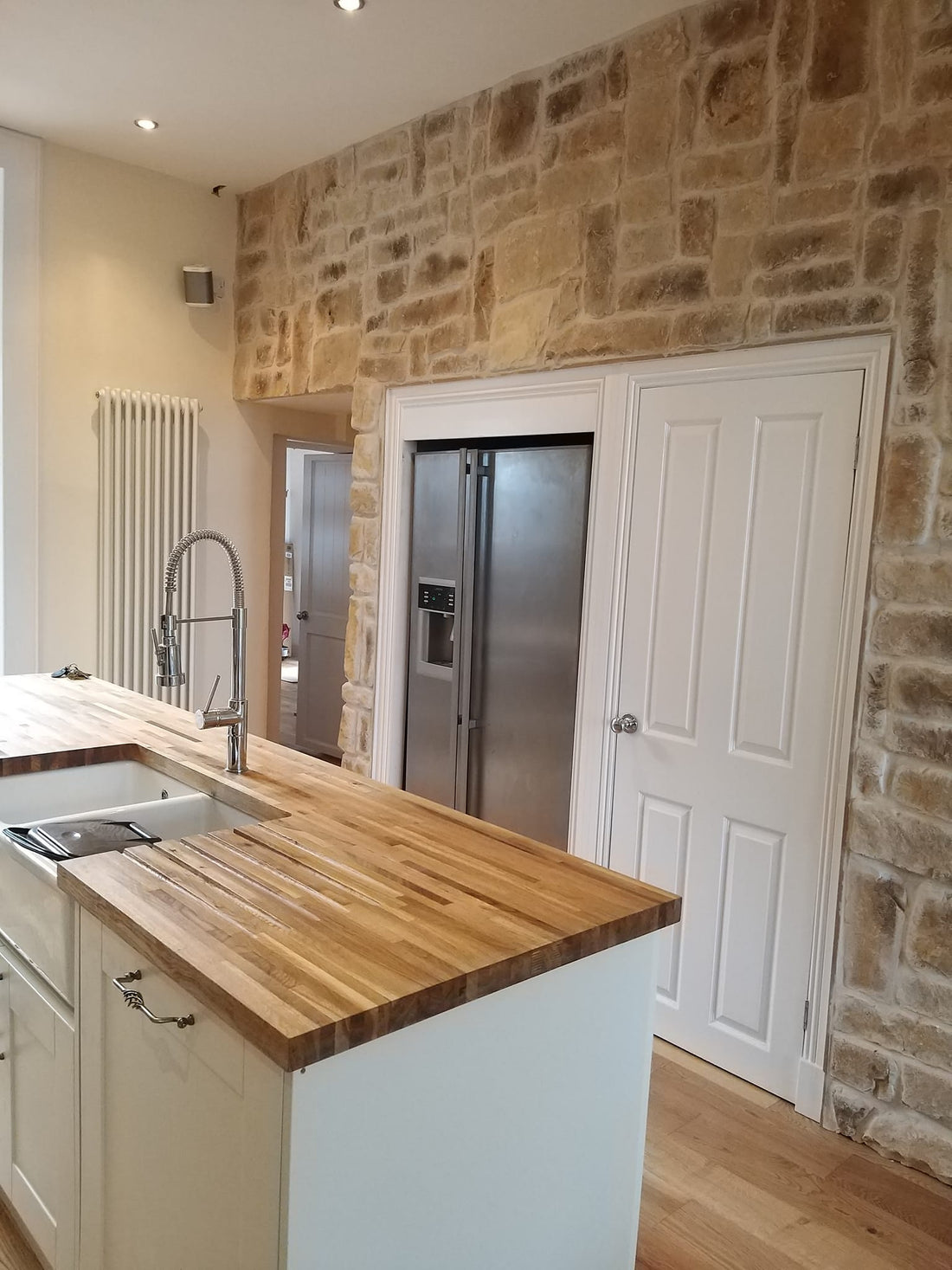

The featured image shows Cotswold Blend cladding around openings in a kitchen. It illustrates the interior finish, not a concealed access-panel installation.

Give the opening a boundary that can still open

Once a suitable panel has been specified, draw its perimeter onto the cladding layout. Keep each slip wholly on its intended moving or fixed surface. A piece spanning the door and surrounding wall would lock the two together.

The perimeter needs the clearance and finish required by the panel manufacturer. Do not bridge it with pointing mortar to disguise the line, and do not invent a sealant joint without checking the specified detail. Hinges, release points and catches must remain usable after decorating.

A restrained rectangular frame may look more deliberate than an elaborate attempt to hide every edge among irregular stones. If you want the perimeter to follow the surrounding joints, discuss that early; the usable opening must not shrink merely to fit a pleasing pattern. Our separate guide to stone cladding edges and cut details covers the surrounding finish, rather than the design of the access door itself.

Test access in the room as it will actually be used

Consider a utility-room stop tap behind a proposed hatch beside a washing machine. On the empty-room drawing, the door opens. With the machine installed, its swing may be obstructed. A successful detail lets the intended user reach the control in the finished room, without first moving a heavy appliance.

Before handover, ask the installer to demonstrate the completed opening and closing sequence after the fixing materials have cured as instructed. Have the responsible trade confirm that the required service tasks remain possible. Check for rubbing edges, inaccessible releases and any mortar accidentally carried across the perimeter.

Keep the panel instructions with the household maintenance information. Record what is behind it, where any opening tool is kept and how the leaf is safely supported or removed. Make emergency controls easy to identify, including for someone who did not watch the renovation.

When choosing from our stone cladding colours and textures, reserve the necessary service space on the drawing first. A slightly smaller stone feature with reliable access is preferable to an uninterrupted finish that has to be broken open at the first repair.
